Swine Incineration

AIS-033

This model is available as a static incinerator or mobile system.
Suited for smaller pig operations such as finishing farms, full access to the main chamber ensures users can load the machine via skid loaders and tractor buckets.
The AIS 033 Cyclone is recognized for also being able to deal with other animal-by-products generated across the agricultural sector including; Poultry, Ewes, Lambs, Game Farms, Estates, Butchers and Farm shops, and is ideal for those looking for a quick, effective and bio-secure animal-by-product incineration solution.
Access to the main chamber is via a Top Loading counterbalance lid.
PLC timer controls with automatic burner shut off function and fast ignition burners. One temperature-controlled burner in the main chamber and one in the secondary chamber.
Burns up to *120 1bs per hour.
Load capacity of up to 728 lbs.
Can be loaded whilst in operation maximizing the inherent thermal efficiency of our trusted monolithic concrete lining, keeping running costs low.
Optional Extra features include; Grate Bars / USB Data Logger / Ash Door / Stack Extensions / Ash Rake / Simple Heat Exchange system / Control Panel screen size increase / Service Kits .

AIS-033

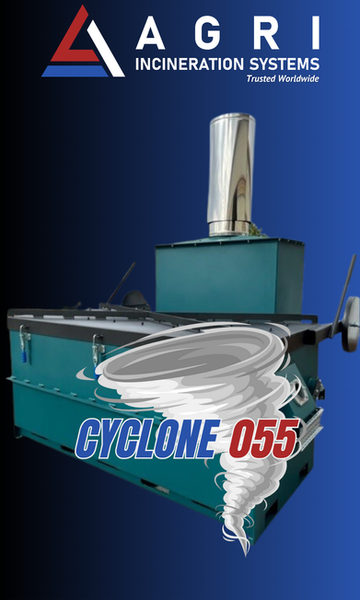

AIS-055

Suited for medium Pig Operations such as Growers, Finishers and Sows, full access to the main chamber ensures users can load the machine via skid loaders and tractor buckets.
The AIS 055 Cyclone is recognized for also being able to deal with other animal-by-products generated across the agricultural sector including; Poultry, Ewes, Lambs, Game Farms, Estates, Butchers and Farm shops, and is ideal for those looking for a quick, effective and bio-secure animal-by-product incineration solution.
Access to the main chamber is via a Top Loading counterbalance lid.
PLC timer controls with automatic burner shut off function and fast ignition burners. Two temperature-controlled burners in the main chamber and one in the secondary chamber.
Burns up to *124 lbs per hour.
Load capacity of up to 1080 Ibs.
Can be loaded whilst in operation maximizing the inherent thermal efficiency of our trusted monolithic concrete lining, keeping running costs low.
Optional Extra features include; Grate Bars / USB Data Logger / Ash Door / Stack Extensions / Ash Rake / Simple Heat Exchange system / Control Panel screen size increase / Service Kits.

AIS-0132

With a *high burn rate of up to 232Ibs per hour and a large load capacity of up to 2602 lbs, the AIS 0132 Cyclone allows for the bio-secure disposal of your animal-by-product waste in the shortest time possible.
Suited for a wide range of larger animal carcasses and animal-by-products generated across the agricultural sector including; Pigs & Sows, Dairy / Beef Cattle
Easy to load via a manually operated roller lid located on the top of the incinerator, giving full access to a large main burning chamber. This ensures users can load the machine via skid loaders and tractor buckets.
PLC timer controls with automatic burner shut off function and fast ignition burners. Two burners are in the main chamber, one additional burner is in the secondary chamber.
Can be loaded whilst in operation maximizing the inherent thermal efficiency of our monolithic concrete lining, keeping running costs low.
Ash doors, fitted as standard, this allows the user to safely remove ash whilst the machine is in operation, so you can keep on loading and burning your waste, saving time.

AIS-1870

This model is available as a Static, Mobile or Transportable Incinerator.
Suited for a wide range of animal carcasses and animal-by-products generated across the agricultural sector including; Pigs & Sows, Poultry, Dairy / Beef Cattle, Abattoirs, Slaughterhouses, Rendering Operations, Meat Processors, Sheep.
Easy to load via a slide Open/Close lid located on the top of the incinerator, giving full access to a large main burning chamber. Manual operation as standard or upgrade to the automated Lid.
Fully programmable touch screen HMI control panel with automatic burner shut off function and fast ignition burners. Four burners are in the main chamber, with one above the grate bars and three below. One additional burner is in the secondary chamber.
With a *High burn rate of up to 1147 Ibs per hour and a loading capacity of 4190 lbs, this allows for the Bio-secure, regular disposal of large quantities of waste in the shortest time possible.
Can be loaded whilst in operation maximizing the inherent thermal efficiency of our monolithic concrete lining, keeping running costs low.
Ash doors, as standard, allows the user to safely remove ash whilst the machine is in operation, so you can keep on loading and burning your waste, saving time.

AIS-3860

The AIS 3860 Cyclone is extremely efficient at dealing with large volumes of animal waste within the agricultural sector, from slaughterhouses through to extra-large animal carcasses
With a loading capacity of up to 8269 lbs the AIS 3860 Cyclone is the largest within the range and boasts a burn rate of up to *2205 Ibs per hour.
Easy to load via a fully automated slide Open/Close lid located on the top of the incinerator, giving complete access to an impressively large main burning chamber.
Unique market leading grate bar technology for fast and complete incineration.
Can be loaded whilst in operation maximizing the inherent thermal efficiency of our monolithic concrete lining, keeping running costs low.
Ash doors as standard, allows the user to safely remove ash whilst the machine is in operation, so you can keep on loading and burning your waste, saving time.
With built-in remote monitoring, this allows our engineers access to the control system so we can support you if needed whilst the incinerator is in operation.
This model is available as a Static, Mobile, or Transportable.
